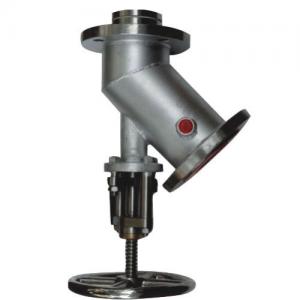

Y Type Jacketed Flush Bottom Valve Product introduction

 Y Type Jacketed Flush Bottom Valve Manufacturer, factory and supplier in China.Y Type Jacketed Flush Bottom Valve is available in C.S or S.S Jacket for uniform heating or cooling.  Steam, Oil, or Water can be circulated in the jacket for heating or cooling of the liquid or slurry passing through the jacketed flush bottom  valve. Y Type Jacketed Flush Bottom Valve mainly used for bottom discharge, discharge, sampling and no-dead zone shut-off operations of reactors, tanks and other containers. The bottom flange of the Y Type Jacketed Flush Bottom Valve is welded to the bottom of the tank and other containers, thus eliminating the residual phenomenon of process media usually at the outlet of the container. According to the needs of the actual situation, the bottom structure is designed for the flat bottom, Y Type Jacketed Flush Bottom Valve body is V-shaped with full jacketed coated, and the two working modes of lifting and lowering the valve disc are provided. The inner cavity of the valve body has a scour and corrosion-resistant sealing ring. At the moment of opening the valve, it can protect the valve body from being washed and corroded by the medium, and carry out special treatment on the sealing ring to make the surface hardness reach HRC56-62, which has the function of high wear resistance and corrosion resistance. The valve disc seal is surfacing cemented carbide on the cover when needed. And prevent scarring. At the same time, the design of short stroke valve disc is adopted.

Y Type Jacketed Flush Bottom Valve Specification:

  Pressure Rating   PN10-PN64,ANSI 150 # / 300 #
  Design  Upward / Downward
  Face to Face   BS 6755 or others
  End Connection   ANSI B16.50 or others
  M.O.C.  CS / SS304 / SS316 / WCB / CF8 / CF8M & Higher Alloys on request
  Option  Hand Wheel Or Pneumatic actuator Operated
  Operation Jacketed
  Size Range  40 mm to 300 mm


Y Type Jacketed Flush Bottom Valve Feature:

1. Y Type Jacketed Flush Bottom Valve is available in C.S or S.S Jacket for uniform heating or cooling.
2. Heating, Cooling, and drain nozzle can be screwed or flanged design.
3. The unique design of the Y Type Jacketed Flush Bottom Valve  ensures “Zero- Hold Up” in the bottom pad of the tank. And facilitate the free flow and quick discharge of the liquid or slurry through the tank bottom valves.
4. Available in both designs, Disc Opening into the tank and Disc Lowering into the valve.
5. Y Type Jacketed Flush Bottom Valve is available in the range of 25 NB to 150 NB and in BS, ANSI, DIN, standards.
6. Y Type Jacketed Flush Bottom Valve can be operated manually as well as Pneumatically, Hydraucally & Electrically.
7. Y Type Jacketed Flush Bottom Valve can also be provided with temperature sensors to measure the temperature in the vessel.
8. Y Type Jacketed Flush Bottom Valve is available in outlet discharge angle of 45 Degree and can also be tailored made to 60 Degree.
9. Y Type Jacketed Flush Bottom Valve is offered in Investment Casting as well as fabricated construction. Valves available in all metallurgy, like, Carbon Steel (CS ASTM A 216 WCB / WCC), S.S 304 (ASTM A 351 Gr CF8), S.S 316 (ASTM A 351 Gr CF8M) , S.S 304L (ASTM A 351 Gr. CF3), S.S 316L (ASTM A 351 Gr CF3M) , Alloy 20, ASTM A 351 Gr. CN7M) Hast alloy C-22 & c-276 (ASTM A 494 Gr. CW12MW / CX2MW ) and as per specification.
10. The jacket of the bottom valve can be made of Carbon steel or Stainless Steel with Screwed BSP (F) Nozzles for circulation of heating or cooling media in the valves.
11. The valve seat- Conical Metal to Metal disc seating/ PTFE seating with option of fixed or Renewable seat. Further metal seating can be hard-faced by StelliteTM where distortion of seat by aggressive liquid or slurry is common.



Y Type Jacketed Flush Bottom Valve Related Products
