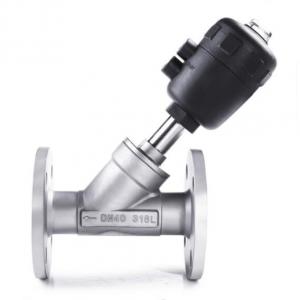

Pneumatic Flanged Angle Seat Valve

Pneumatic Flanged Angle Seat Valve Product introduction

　Pneumatic flanged angle seat valve manufacturer, factory and supplier in China. Pneumatic flanged angle seat valve body can be 304SS 316SS or other material, plastic or steel actuator for option. Pneumatic flanged angle seat valve is a common pipeline switch in automatic control system, Pneumatic thread end angle seat valve is widely used in printing and weaving, printing and dyeing, bleaching, food, washing, chemical, water treatment, medicine and other automatic mechanical equipment, with no water strike, no noise, reliable sealing performance and other characteristics.

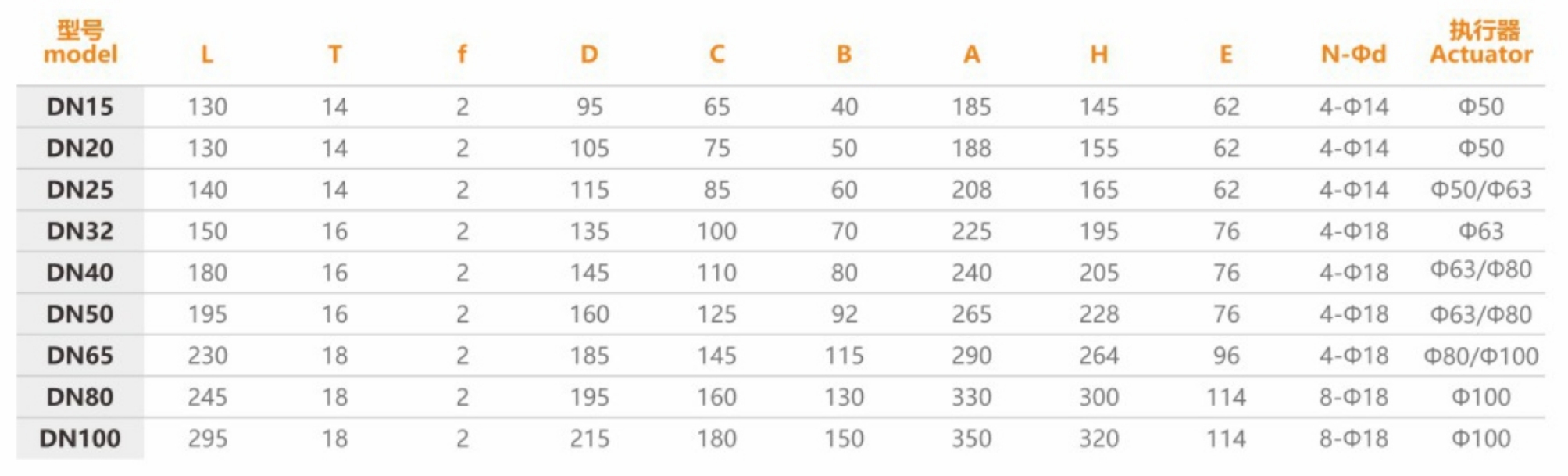

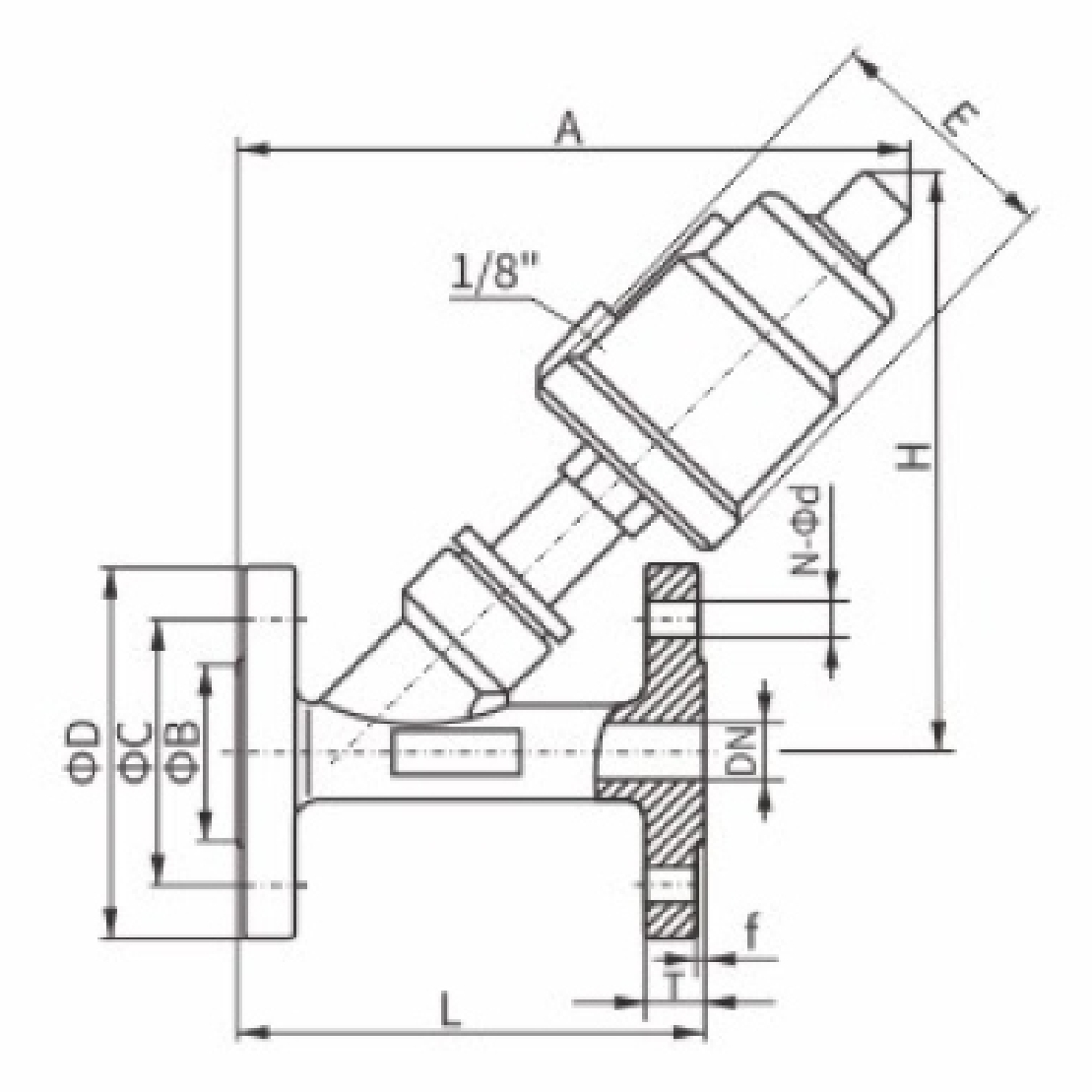

Pneumatic flanged angle seat valve specification:

Type: double acting reciprocating, spring return type

Nominal size: DN10-DN100

Nominal pressure: PN16 ~ PN25

Valve body material: CF8M/CF8(SS316,SS304)

Sealing material: PTFE

Applicable medium: water, neutral gas and liquid, alcohol, oil, organic solvent, water vapor, weak acid and weak base solution

Medium temperature: PTFE: -20℃~ 180℃

Ambient temperature: -10℃-+80℃

Control form: single acting normally closed, normally open, double acting normally closed, double acting free state

Connection mode: internal thread, flange, quick assembly, welding

Air source pressure: double action: 3-8bar/ single action: 4-8bar

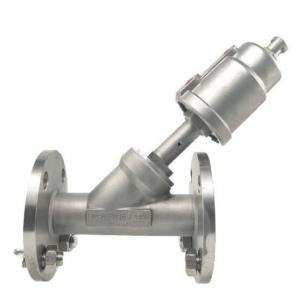

Actuator housing: polyamide, stainless steel
