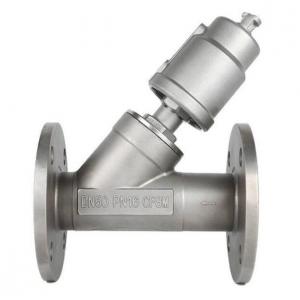

Air Actuated Angle Seat Valve

Air Actuated Angle Seat Valve Product introduction

　China air actuated angle seat valve manufacturer, factory and supplier. Air actuated angle angle seat valve is a common pipeline switch in automatic control system, Air actuated angle seat valve is widely used in printing and weaving, printing and dyeing, bleaching, food, washing, chemical, water treatment, medicine and other automatic mechanical equipment, with no water strike, no noise, reliable sealing performance and other characteristics.

The main material of Air actuated angle seat valve body is 304 and 316 stainless steel. The cylinder body material can be industrial resin polyamide (PA) or stainless steel. Air actuated angle seat valve is widely used in a variety of industries for fluid control, including beer and beverage, textile printing and bleaching, pharmaceutical and medical equipment, food processing, rubber machinery, organic and inorganic chemical industry, cleaning, disinfection and high temperature sterilization, water treatment and other industries, suitable for the medium of water, oil and gas, air, water vapor and other pure impurities or corrosive gas liquid. Compared with other valves, air actuated angle seat valve has the advantages of economic investment, safe use, free maintenance and long life. With the widespread of industrial automation technology, the use of PLC and integrated control valve to achieve centralized control and remote control, reduce a variety of environmental and human interference, so as to further improve the equipment level of enterprises.

Air actuated angle seat valve specification:

Type: double acting reciprocating, spring return type

Nominal size: DN10-DN100

Nominal pressure: PN16~ PN25

Valve body material: CF8M/CF8(SS316,SS304)

Sealing material: PTFE

Applicable medium: water, neutral gas and liquid, alcohol, oil, organic solvent, water vapor, weak acid and weak base solution

Medium temperature: PTFE: -20℃~ 180℃

Ambient temperature: -10℃-+80℃

Control form: single acting normally closed, normally open, double acting normally closed, double acting free state

Connection mode: internal thread, flange, quick assembly, welding

Air source pressure: double action: 3-8bar/ single action: 4-8bar

Actuator housing: polyamide, stainless steel

Valve position signal: Positioner: 4 ~ 20mA/ returner: full on and off signal

Air actuated angle seat valve features:

1. Visual position indication: can be connected to the limit switch or emergency manual device.

2. Easy to install: the air control head can be rotated 360°, and even the limit switch can be rotated 360°. It can be easily installed to two limit switches.

3. Advanced pneumatic controller: thickened engineering plastic shell, safe and reliable. Low wear piston structure, large capacity and low gas consumption. Internal components self-lubricating, maintenance free.

4. Easy connection: MAMUR standard connection, embedded metal connector. A smaller control head is optional.

5. Long life guide rod: stem Teflon (PTEE) seal, avoid dirt import. Self lubricating, maintenance free. Stem is specially treated to ensure optimal fixation and automatic position correction.

6. No water hammer action: When the fluid flows from below the valve stem, the water hammer (water impact) is absorbed.

7. Advanced valve body mechanism: flow is 30% larger than the ordinary Angle seat, smaller volume, better fluid flow.

8. Stainless steel 304 316 body, Teflon seal, high temperature resistance, corrosion resistance. Life up to five million times, the single acting Angle seat valve has the advantages of simple structure, beautiful appearance, quick assembly and disassembly, quick switching, flexible operation, small fluid resistance, safe and reliable use.

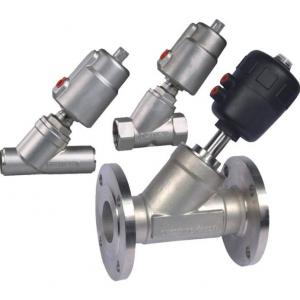

Different air actuated angle seat valve for option:
