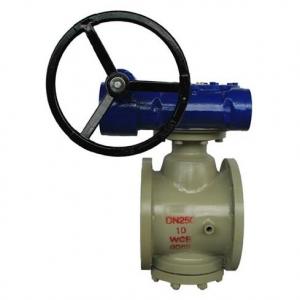

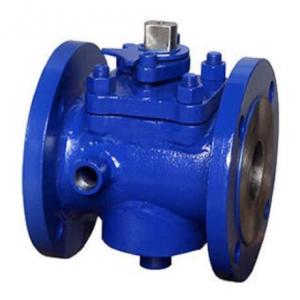

Steam Jacketed Plug Valve

Steam Jacketed Plug ValveSteam Jacketed Plug Valve
Steam Jacketed Plug Valve

Steam Jacketed Plug Valve Product introduction

 China Steam jacketed plug valve manufacturer, factory and supplier. Steam jacketed plug valve is used to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Steam jacketed plug valve is widely used in High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

Steam jacketed plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.


The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Stainless steel Lift jacketed plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

Steam jacketed plug valve is generally supplied with manual hand lever or gear unit operated, depending on jaketed plug valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.

Steam jacketed plug valve specification:
Design Standard BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance As Per ANSI B 16.10
End Connection Flanged End to ANSI B 16.5, Class 150 / 300
  PN 6 / PN 10 / PN 16 / PN 25 / PN 40
  DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve 150# / 300#
  PN 10 / PN 16 / PN 25 / PN 40
Valve Operation Manual Hand Lever / Worm-Gear Operated
  Pneumatic Actuator / Electrical Actuator
Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
