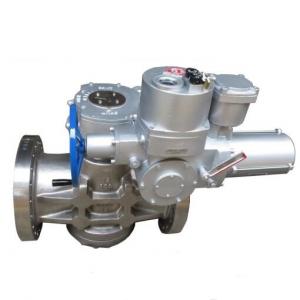

Motorized actuator lubricated plug valve Product introduction
China Electric actuated and motorized plug valve manufacturer, factory and supplier. Motorized actuator lubricated plug valve is componsed of pressure balanced lubricated plug valves and electric actuator with on-off or regulating function. Motorized actuator lubricated plug valve is a quick switch through valve, due to the movement between the rotary sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media. Motorized actuator lubricated plug valve can usually also be used with suspension of the medium.
Another important feature is that it is easy to adapt to a multi-channel structure, Motorized actuator lubricated plug valve can have two, three, or even four different flow channels.This simplifies the design of the piping system and reduces the number of valves and connections required in the equipment. Motorized actuator lubricated plug valve is widely used in industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power and industry.
Motorized actuator lubricated plug valve Specification
Construction：2-Way / 3-Way /4 Way
Type: PTFE (Teflon) Sleeved / Teflon Fully Lined Lubricated / Pressure Balanced Plug Valve
Standard: API-599 / BD-5353 / API-6D or Others
Size: DN15-DN600
Port: Full-Bore / Reduced Bore
Pressure Class: PN10-PN420,CLASS 150-2500 according to structure
End: Flanged / SW / BW / Screwed (BSP/NPT)
Material: WCB-CF8-CF8M-CF3-CF3M-LCB-WC1-WC6-CN7M-CD4MCu-HAST-B/HAST-C
Speciality: Fire-Safe, Extended Stem, Jacketed or Others.
Motorized actuator lubricated plug valve Actuator Specification
Electric Actuator: Quarter-Turn Electric Actuator
Supply voltage: AC220/380V, 50/60Hz or Customized
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-67
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
