Stainless Steel 3 Way Plug Valve
Stainless Steel 3 Way Plug Valve

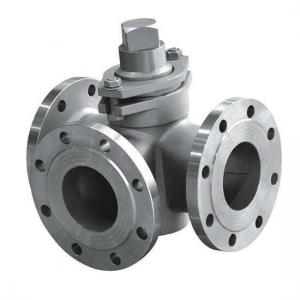

Stainless Steel 3 Way Plug Valve Product introduction
Stainless steel 3 way plug valve is flanged T port or L port 3 way plug valve with different stainless steel material and pressure class, stainless steel 3 way plug valve is applicable in petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas, hvAC industry and general industry with Nominal pressure range: 150Lb-600Lb,Nominal size: 1/2"--24" (DN15--DN600), Stainless steel 3 way plug valve applicable temperature: -40~+450℃, Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional).
Stainless steel 3 way plug valve feature:
1. Stainless steel 3 way plug valve has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions, Stainless steel 3 way plug valve can be designed into various medium flowing forms (e.g." type or "T" type)or all kinds of materials (Cast iron, cast steel, stainless steel ) or various sealing forms (e.g. metal to metal, sleeve type, lubricated, etc.)
3. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation the customer required, so as to meet the various needs of engineering.
4. Stainless steel 3 way plug valve is applicable to change the medium flowing direction to distribute the mediums,Three way stainless steel plug valve are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power, industry etc. under nominal pressure class 150-900LBS, PN 1.0-16.0, working temperature of -40~450℃
Stainless steel 3 way plug valve technical requirement:
| Diving manner |
Hand wheel, worm, worm gear, pneumatic, electric-actuated |
| Design standard |
AP1599, AP16D, GB12240 |
| Face to face |
ASME B16.10, GB12221,DIN3202 |
| Flange end |
ASME B 16.5,JB79,GB9113,DIN2543-2545 |
| Test ＆inspection |
AP1598.AP16D,GB13927,DIN3230 |
