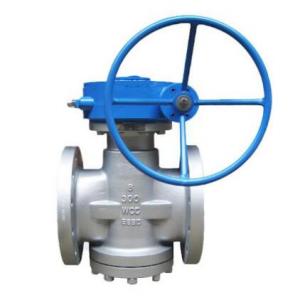

Non-Lubricated Plug Valve Manufacturer Product introduction

Non-Lubricated Plug Valve Manufacturer, Factory and Supplier In China. Non-Lubricated Plug Valve is robust in construction and easy to maintain in-line. Non-Lubricated Plug Valve is sleeved quarter-turn plug valve that achieve sealing through the use of a compressible sleeve as a sealing member. In many applications, they operate virtually maintenance-free for decades. Non-Lubricated Plug Valve (Sleeved plug valve) is used for on/off and throttling service. Non-Lubricated Plug Valve is used in a variety of industries, including petroleum, the chemical industry, pharmacy, chemical fertilizer, and the electric power industry.

Non-Lubricated Plug Valve is bi-directional flow, simple actuation, lightweight, compact design, and multiport configurations, all of which facilitate improved system design. The inert PTFE sleeve completely surrounds the plug. The sleeve provides a large, circumferential sealing surface from port to port. Open, closed, or rotating, the seal is assured. As the plug rotates, the 360° port lips provide a self-cleaning action to remove scaling and adhering media. Non-lubricant valves are used where less maintenance is required. The friction between the plug cone and body is reduced by sleeves. However, non-lubricated plug valves are limited by the temperature and chemical compatibility of their non-metallic materials. Non-lubricating plug valve is used to regulate the process fluid, such as sulfur, hydrogen fluoride, or where liquids could be trapped or solidified and potentially clog the valve.


Non-Lubricated Plug Valve specification:

Specifications Details
Design Standard API-599, API-599, ASME B16.34
Pressure/Temperature Chart ASME B16.34
 Face to face Dimension API-6D, ASME B16.10,
Testing Standard API 598 / BS EN 12266-1
Flange Details ASME B16.5 UP TO 24″

DIN / BS / IS / JIS
Butt Weld Ends ASME B16.25
Socket Weld Ends ASME B16.11
Screwed Ends ASME B16.11
Size Range 2″ – 24″ (DN50 – DN600)
ASME Class Class 150 & 300
Materials WCB / LCB / LCC / CF8M / CF8 /CF3M / 4A / 6A
Trims F6a / F316 / F304 / F316L / F321 /
F51 / F55 / Inconel
Sleeve PTFE, RPTFE
Ends Flange Ends, Butt-weld Ends, Screwed Ends, Socket Weld Ends.
