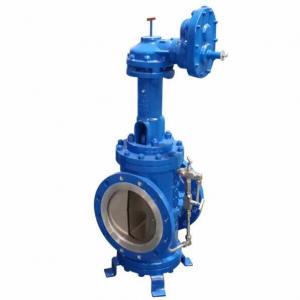

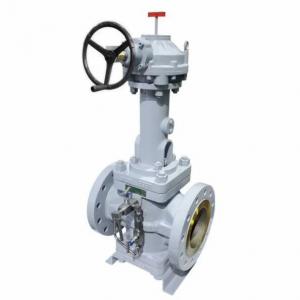

Dual Expanding Plug Valve

Dual Expanding Plug ValveDual Expanding Plug Valve
Dual Expanding Plug Valve

Dual Expanding Plug Valve Product introduction

 China dual expanding plug valve, double seal plug valve, twin seal plug valve manufacturer, factory, company and supplier. The good sealing performance of the dual expanding plug valve can ensure the pump's stable working state and avoid "flow cutoff for air resistance", good performance and long service life.

Dual expanding Plug Valve Specification:

Design standard :API 6D
Pressure scope :CLASS 150Lb~900Lb
Nominal diameter : NPS 2~36″
Body material:A105、LF2、F304、F316、F304L、F316L、F51,WCB、LCB、WCC、CF8、CF8M、CF3、CF3M、A890 4A etc
End connection :RF RTJ BW
Drive device: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device;



Dual expanding Plug Valve Feature:
The double seal structure of the double seal dual expanding plug valve is not just shown in the double disc, but more importantly, the sealing surface of each disc has both soft and hard seal types, and the precision of the hard seal is not lower than Level 4, which not only ensures the valve's zero leakage but also makes it fireproof.  It can be seen from the figure that the soft seal(rubber) is embedded in the grooves of the disc, raised in the middle and concave on both sides; that is in favor of the soft seal being compressed and flowing to the grooves on both sides during the plug valve's closing process to finally form a hard seal; its advantage is to protect the soft seal from being crushed and meanwhile to ensure to realize the hard seal.

Dual Expanding Plug Valve Related Products

Previous:Full Bore Orbit Plug Valve

Next:DBB Twin Seal General Valve
