Cast steel trunnion mounted ball valve 150lb

Cast steel trunnion mounted ball valve 150lbCast steel trunnion mounted ball valve 150lb
Cast steel trunnion mounted ball valve 150lb

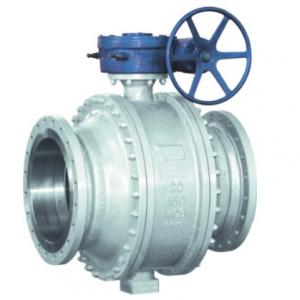

Cast steel trunnion mounted ball valve 150lb Product introduction

Cast steel trunnion mounted ball valve 150lb

Cast steel trunnion mounted ball valve 150lb Technical parameters

Nominal pressure :  Class 150lb
Working temp.:≤800℃
Nominal diameter: 2''- 36''
Service: Water,oil,gas,steam
Trunnion mounted cast steel ball valve 150lb applicable standard :API 608/ASME B16.34
Trunnion mounted cast steel ball valve 150lb fire durable:API 607
Trunnion mounted cast steel ball valve 150lb anti static :API 608
Trunnion mounted cast steel ball valve 150lb face to face standard: ASME B16.10
Trunnion mounted cast steel ball valve 150lb flange end standard: ASME B16.5
Trunnion mounted cast steel ball valve 150lb 150lb inspection and test: API 598

Trunnion mounted cast steel ball valve 150lb design description:
Full port design
BB, Bolted bonnet ,split body
Three piece body for 12’’ & above
Blow-out proof stem
Fire durable construction
Anti static device
Stopper device
ISO 5211 Mounting pad
Flange or butt welding ends
Available with WG operator

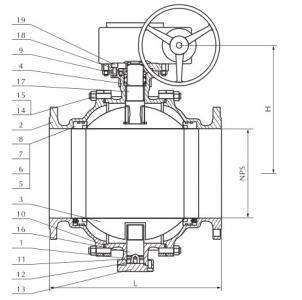

Cast steel trunnion mounted ball valve 150lb Main part material

No Part name ASTM Material
Carbon steel 18Cr-9Ni-2Mo Carbon steel
1  Body A216-WCB A351-CF8M A352-LCB
2 Bonnet  A216-WCB A351-CF8M A352-LCB
3 Ball A182-F304 A182-F316 A182-F304
4 Stem A276-304 A276-316 A276-304
5 Seat  A105+ENP A182-F316 A350-LF2+ENP
6 Stem insert Class filled PTFE
7 Seat spring A313-304 Inconel X-750 A313-304
8 Seat O-ring NBR Vition Vition
9 Stem O-ring NBR Vition Vition
10 Bonnet gasket Graphite+304 Graphite+316 Graphite+304
11 Bonnet O-ring NBR Vition Vition
12 Antistatic spring A313-304 A313-316 A313-304
13 Grounding plunger A216-WCB A182-F316 A182-F304
14 Bonnet stud A193-B7 A193-B8 A320-L7
15 Bonnet stud nut A194-2H A194-8 A194-4
16 Trunnion  A276-304 A276-316 A276-304
17 Trunnion bearing 304+PTFE 304+PTFE 304+PTFE
18 Gland flange A216-WCB A351-CF8M A352-LCB
19 Gland bolt A193-B7 A193-B8 A193-B7
20 Stop plate Carbon steel Carbon steel+Zn Carbon steel
21 Handle Carbon steel

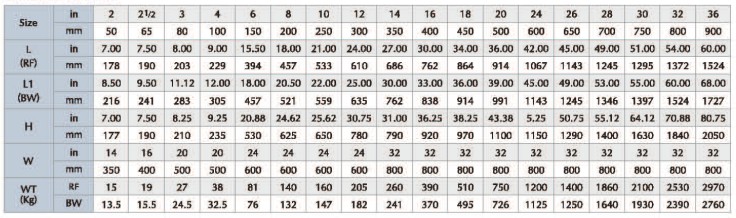

Cast steel trunnion mounted ball valve 150lb Main dimension

Cast steel trunnion mounted ball valve 150lb Related Products

Previous:Cast steel float ball valve 600Lb

Next:Cast steel trunnion mounted ball valve 300lb
