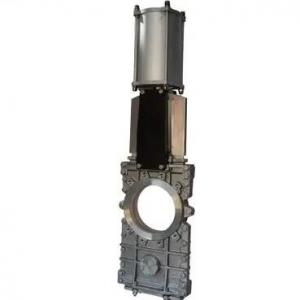

Pneumatic through conduit knife gate valve manufacturer, factory and supplier. Pneumatic through conduit knife gate valve is composed of  bi-directional knife gate valve and single or double acting pneumatic actuator. Optional accessories: Solenoid valve, limite switch, electric position, air regulator. Pneumatic through conduit knife gate valve is mainly designed for highly concentrated flow media. With a through going O-port plate, this valve provides a stable and safe shut-off performance without clogging. With double-seat design, it can handle flow in both directions.

Pneumatic through conduit knife gate valve specification:

Pneumatic through conduit knife gate valve Features:

1.    Body：

a)   Full port design minimizes pressure drop and maximizes flow capacity.

b)   Packing at both top and bottom eliminates leakage to surrounding.

2.    Gate：

a)    Though gate with o-port cut through a disc of media down when closing and return this portion back when opening.

        This prevent media from clogging in the valve body cavity.

b)    Gate thickness can be increased to handle higher working pressure.

c)    Gate surface is well polished at both sides for tight seal and less jamming.

d)    Gate is hard chrome coated for better abrasion resistance.

3.    Seat：

a)    Side-entry seat is replaceable, reducing the cost of maintenance.

b)    Seat retainer covers the side of seat and prevents seat from direct flow flushing.

c)    Preloaded seat is adjustable to meet different sealing class and compensate normal seat wear.

d)    With seats on both sides, valve can handle flow in both directions 100%.

4.    Other：

a)   Double thrust bearing minimizes the operating torque.
