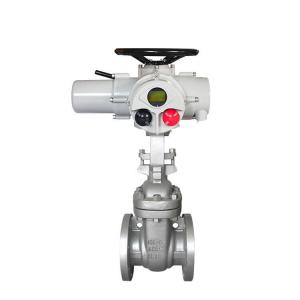

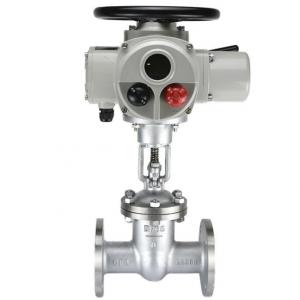

China Motor Operated Gate Valve

China Motor Operated Gate ValveChina Motor Operated Gate Valve
China Motor Operated Gate Valve

China Motor Operated Gate Valve Product introduction

 China Motor Operated Gate Valve Manufacturer, Factory, Company and Supplier. China Motor Operated Gate Valve is also called electric gate valve, motorized actuator gate valve, which is an ordinary gate valve that operated by an Motorized actuator. Motor Operated Gate Valve is widely used for various applications like a power plant, shipyard, oil and gas, wastewater treatment, paper and pulp,etc.


China Motor Operated Gate Valve speicification:

Pressure 16bar, 25bar, 40 bar, 64bar, Class 150, Class 300, 10K, 20K
Temperature -22°F to 356°F
Medium Water, Oil, Gas, Pulp, Mud, etc
Material Cast steel or Stainless Steel 304/316/316L
Connection Flanged (ANSI, JIS, DIN)
Size range DN15-DN1200


China Motor Operated Gate Valve feature:
1. A one-stop valve solution for start and stop the flow rate
2. Weather-proof aluminum alloy multi-turn actuator for outdoor use
3. Multi-turn actuator to help to control locally or remotely
4. Offering multiple options of Fieldbus to help to connect with your control system with a right Fieldbus
5. Available in WCB and stainless steel valve material for your choice


China Motor Operated Gate Valve electric actuator parameter:

Power supply conventional: single phase 220v, three phase 380v
special: three phase 400v, 415v, 660v(50Hz, 60Hz)
Working environment Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized)
Relative humidity: 95% (at 25 ° C)
Protection level Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Working system short time 10 minutes (15-60 minutes for special order)

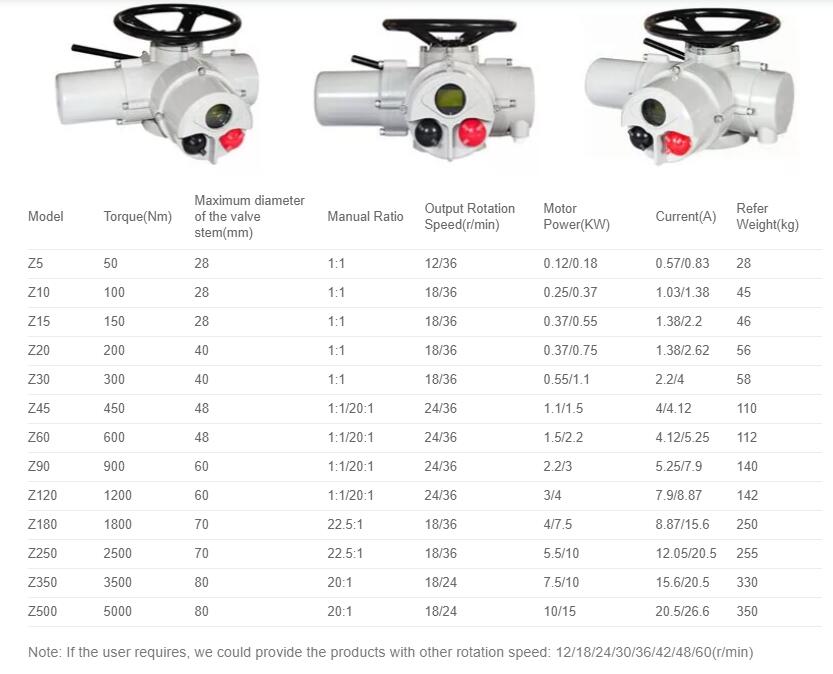

China Motor Operated Gate Valve Technical parameters

China Motor Operated Gate Valve
