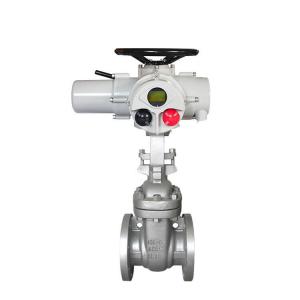

Explosion Proof Motorized Gate Valve

Explosion Proof Motorized Gate Valve Product introduction

　Explosion proof motorized gate valve manufacturer, factory, company and supplier in China. Explosion-proof electric gate valve protection grade is IP68, which is suitable for inflammable and explosive occasions, high safety factor, strong operation function, stable performance, etc. Explosion proof motorized gate valve include dI and dIIBT4. dI is suitable for non-mining working face of coal mine. dIIBT4 is used in factories, suitable for the environment of IIA, IIB class T1 ~ T4 explosive gas mixture.

Explosion proof motorized gate valve speicification:

Pressure	16bar, 25bar, 40 bar, 64bar, Class 150, Class 300, 10K, 20K
Temperature	-22°F to 356°F
Medium	Water, Oil, Gas, Pulp, Mud, etc
Material	Cast steel or Stainless Steel 304/316/316L
Connection	Flanged (ANSI, JIS, DIN)
Size range	DN15-DN1200

Explosion proof motorized gate valve feature:
1. A one-stop valve solution for start and stop the flow rate
2. Weather-proof aluminum alloy multi-turn actuator for outdoor use
3. Multi-turn actuator to help to control locally or remotely
4. Offering multiple options of Fieldbus to help to connect with your control system with a right Fieldbus
5. Available in WCB and stainless steel valve material for your choice

Explosion proof motorized gate valve electric actuator parameter:

Power supply	conventional: single phase 220v, three phase 380v
Power supply	special: three phase 400v, 415v, 660v(50Hz, 60Hz)
Working environment	Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized)
Working environment	Relative humidity: 95% (at 25 ° C)
Protection level	Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Working system	short time 10 minutes (15-60 minutes for special order)

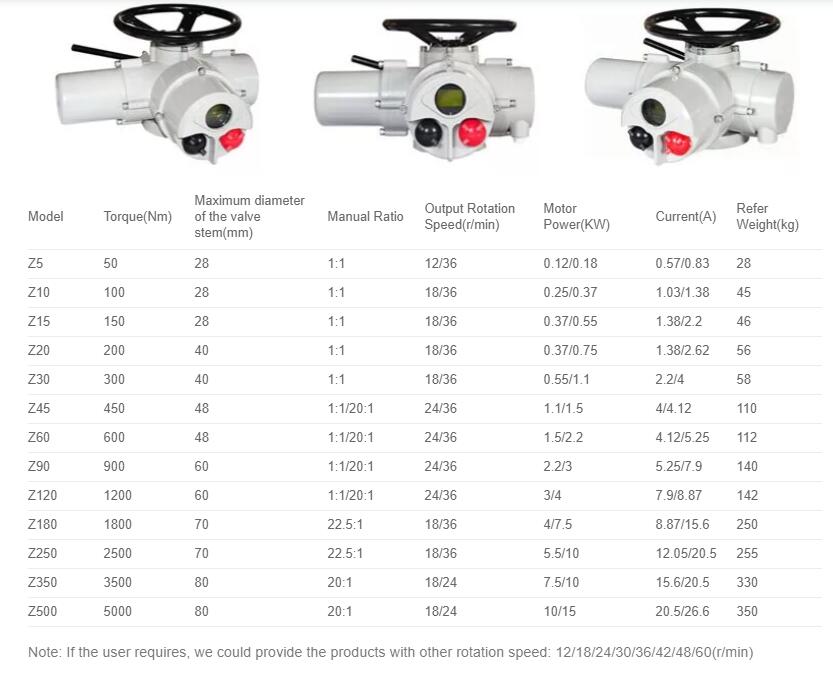

Explosion Proof Motorized Gate Valve Technical parameters
