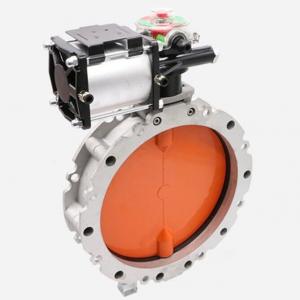

V2FS Double flange dust butterfly valve

V2FS Double flange dust butterfly valveV2FS Double flange dust butterfly valve
V2FS Double flange dust butterfly valve

V2FS Double flange dust butterfly valve Product introduction

China VFS Dust butterfly valve,butterfly damper manufacturer, factory and supplier. V2FS Double flange dust butterfly valve consist of two high-pressure aluminium alloy die-cast semi-body. V2FS dust butterfly valve comes with identical top and bottom flange,V1FS dust butterfly valve has a top flange and beaded bottom section – suitable for the attachment of a flexible sleeve.

V2FS Double flange dust butterfly valve Feature:
V1FS with top flange and beaded bottom section suitable for fixing a flexible sleeve
V2FS with identical top and bottom flange
Dust tight and pressure-proof up to 0.2 bar (2.9 PSI)
High-pressure, aluminium alloy die-cast semi-bodies
Disc in cast iron, SINT engineering polymer, or stainless steel
Seals for standard or food-grade applications
Made up of few components
Used for powders, granules
Lightweight and easy to handle


V2FS Double flange dust butterfly valve Benefit:
Highly abrasion-resistant
Easy to fit
Time-saving maintenance
Low operating and maintenance costs
Interchangeable discs
Ex-stock delivery

V2FS Double flange dust butterfly valve Function:
To close silos, hoppers or bins containing powders or granules, VFS Butterfly Valve range among the most widely used equipment worldwide.

V2FS Dust butterfly valve used to be custom-built items for specific applications, which has turned into a mass-produced, industrial product with features that allow extremely versatile use.
VFS Butterfly Valve is used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.

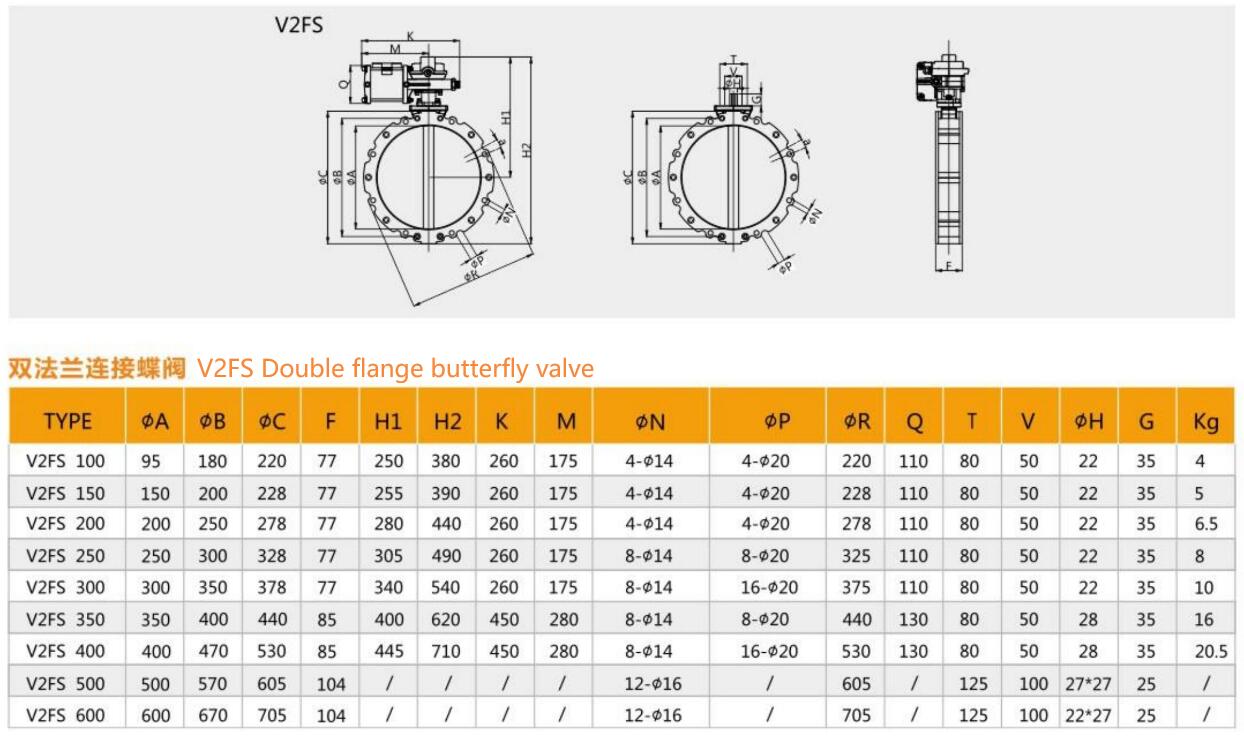

V2FS Double flange dust butterfly valve Main dimension

V2FS Double flange dust butterfly valve
