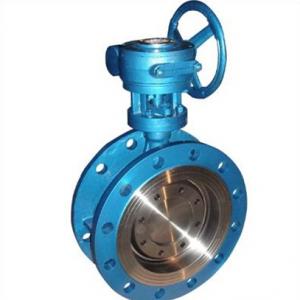

Triple eccentric butterfly valve

Triple eccentric butterfly valve Product introduction

China Triple eccentric butterfly valve manufacturer, factory and supplier. Triple eccentric butterfly valve has excellent sealing performance and corrosion resistance. With long life and so on, the strength is high, the overflow area is large, the flow resistance is small, Triple eccentric butterfly valve has the function of two-way sealing, Triple eccentric butterfly valve is not restricted by the flow direction of the medium, and is not subject to the space position. The butterfly valve can be installed in any direction.

Triple eccentric butterfly valve Technical Specification
Normal Size Range: 2"-80"
Normal Pressure Rating: PN10~PN64, CLASS150~600
Material: WCB, CF8,CF8M,CF3,CF3M
Operation: Handwheel, Pneumatic, Electric
Temperature Range: -29°C~425°C

Triple eccentric butterfly valve Standards compliance
Design and Manufacture: GB/T12228, API609
Face to face(end to end): GB/T12221
Flanged connection: ANSI B16.5, GB/T 9113
Test and inspection: API 598, GB/T 13927

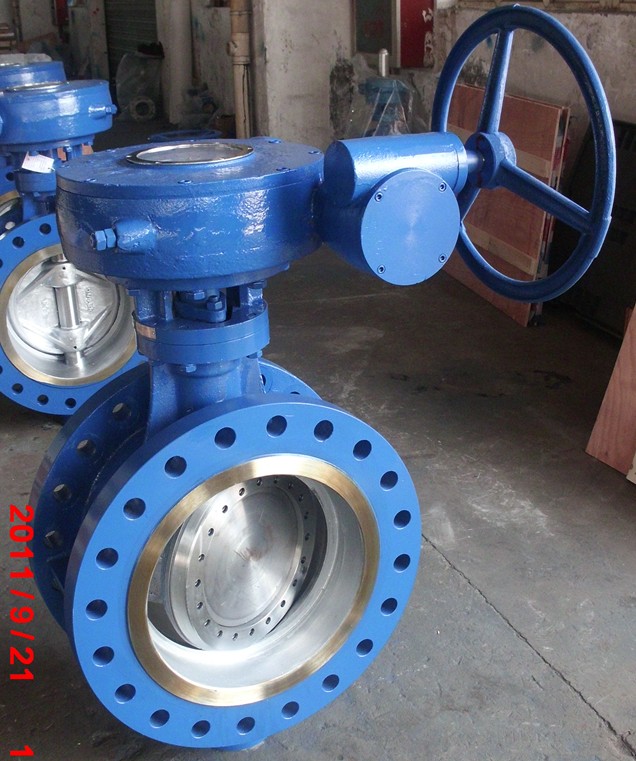

Triple eccentric butterfly valve Product show
