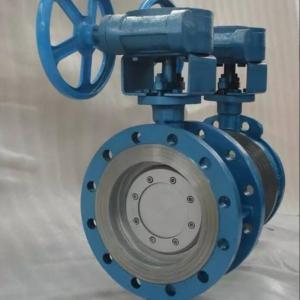

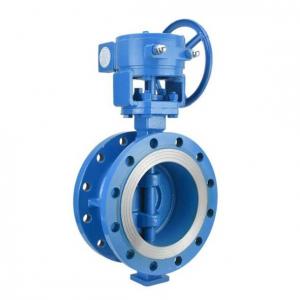

Triple eccentric butterfly valve DN600

Triple eccentric butterfly valve DN600Triple eccentric butterfly valve DN600
Triple eccentric butterfly valve DN600

Triple eccentric butterfly valve DN600 Product introduction

 Triple eccentric butterfly valve DN600 adopts triple eccentric multi layer metal seal structure, Triple eccentric butterfly valve DN600 suitable for metallurgical, electric power, petrochemical and water supply and drainage pipelines of temperature ≤425℃, as the flow regulation and closure device.

Triple eccentric butterfly valve DN600 characteristics

1. The butterfly plate sealing ring of the metal hard seal butterfly valve is a soft and hard laminated metal sheet, which has the dual advantages of metal seal and elastic seal. It has excellent sealing performance no matter in low or high temperature conditions.

2. Triple eccentric structure, almost no friction between the valve seat and the butterfly plate, with more close more tight sealing function.

3. The sealing surface of the valve body is made of surfacing stainless steel and cobalt-based hard alloy. The sealing surface is wear-resistant and has long service life.

4. Metal hard seal butterfly valve unique structure, flexible operation, labor-saving, convenient, not affected by the medium pressure of high and low, reliable sealing performance.


Triple eccentric butterfly valve DN600 specifications

Nominal diameter: DN50 ~ 2000mm

Nominal pressure Pn (LB) : 0.6 ~ 6.4MPa

Applicable medium: air, water, steam, gas, oil and acid, alkali, salt with weak corrosive medium, etc

Applicable temperature: carbon steel: -29℃~425℃;Stainless steel, chrome-molybdenum steel: -40℃~550℃

Leakage rate :0.1*DNmm3/S (in line with GB//T13927-92 standard)

Actuation: handle, turbine, electric, pneumatic.Electric and pneumatic devices adopt famous and superior products at home and abroad, with more reliable performance (can be specified by users).

Stem can be lengthened according to user's requirements.

When the butterfly valve is used in urban heating pipe network, the two-way pressure sealing can be selected according to the user's demand.


Triple eccentric butterfly valve DN600 Main parts and materials

Body: carbon steel, stainless steel, chromium molybdenum steel, alloy steel

Stem: 2Cr13, 1Cr13 stainless steel, chromium molybdenum steel

Butterfly plate: carbon steel, alloy steel, stainless steel, chromium molybdenum steel

Bearing: austenitic stainless steel, 304 nitriding

Sealing ring: stainless steel and high temperature resistant asbestos plate is composed of multiple layers

Filling: flexible graphite
