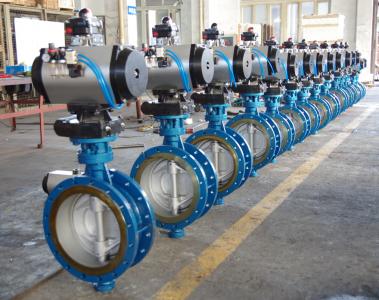

D943H Motorized Triple eccentric Butterfly Valve
D943H Motorized Triple eccentric Butterfly Valve
D943H Motorized Triple eccentric Butterfly Valve Product introduction
D943H Motorized Triple eccentric Butterfly Valve is used in on-off and control flow of medium in vaired pipelines such as foodstuff,beverage,machine,chemical engineering,industrial enviromental proction,water treatment and building ect .
D943H Motorized Triple eccentric Butterfly Valve details:
- Construction Type: Double Triple Offset Disc Design
- Body: WCB / SS 304 / SS 316 / SS 304L / SS 316L
- Disc: WCB / SS 304 / SS 316 / SS 304L / SS 316L
- Seat: Metal
- Shaft: AISI 410 / SS 304 / SS 316
- Plate Mounting: NAMUR Standard
- Pressure Rating: 150#
- End Connection: Wafer Type
- Operation: Motor Operated
- Fire safe Butterfly valves Available on Request
D943H Motorized Triple eccentric Butterfly Valve Actuator details:
- Characteristic: On - Off Type
- Travel: 90 Degree
- Indicator: Continuous Position Indicator
- Phase: Single Phase / THREE PHASE
- Power Supply: 220V AC, 50 Hz / 415 V AC
- Body Material: Aluminum Alloy
- Ambient Temperature: -20°C ~ 80°C
- Motor Insulation: Class F
- Protection Class: IP 67 - Weather Proof
- Limit Switch: 1NO 1NC Output of 220V AC
- Position On Power Fail: Stay Put
- Manual Override: Provided
D943H Motorized Triple eccentric Butterfly Valve Actuator Accessories:
- Modulating Controller: Input Signal 4 ~ 20mA
- Potentiometer Feedback
- Integral Starter Unit
- Control Panel
