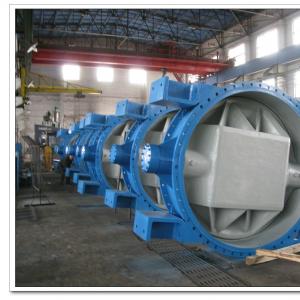

D342X BS 5155 Butterfly Valve short length

D342X BS 5155 Butterfly Valve short length

D342X BS 5155 Butterfly Valve short length

D342X BS 5155 Butterfly Valve short length

D342X BS 5155 Butterfly Valve short length Product introduction

D342X BS 5155 Butterfly Valve short length Specification

Structre type: Double-eccentric Butterfly Valve

Design standard: BS 5155

Flange connection dimension: BS 4504 PN16,DIN 2533 PN16

Structure length: BS 5155-short size

Pressure test: BS 5155

D342X BS 5155 Butterfly Valve short length Application

1. The materials of D342X BS 5155 Butterfly Valve short length parts are selected excelletly

2. This valve adopts double-eccentric construction.Small friction of Seat and torque during opening orclosing.

3. The disc of D342X BS 5155 Butterfly Valve short length is trussframed with plates and flow resistant is lower.

4. It has reliable sesling structure for two-way stoping without leakage.

5. The rubberfly sealring could be replaced on pipeline without removing the valve( DN>700)

6. The axle sleeves are selflubricated beaing, oiling is out need and friction drag is small during operation.

D342X BS 5155 Butterfly Valve short length Main part material

NO.	Part Name	Material
1	Bolt	WCB
2	End Cover	WCB
3	O-Ring	EPDM/NBR
4	Bushing	PTFE/Brass
5	Body	GG25/GGG40
6	Down Stem	SS416/SS304
7	Disc Pin	SS304
8	Disc	GGG40
9	Retaining Ring	GGG40
10	Rubber Sealing	EPDM/NBR
11	Body Sealing Ring	SS304
12	Stuffing	EPDM/NBR
13	Stuffing Box	Stainless Steel
14	Up Stem	SS416/SS304
15	Manual Actuator	Assembly

D342X BS 5155 Butterfly Valve short length Main dimension

Size	L	D	D1	D2	b	n-?d1	H1	H2	B1	B2	B3	B4	KG
DN100	127	220	180	158	24	8-18	210	295	125	87	105	341	60
DN150	140	285	240	212	26	8-23	210	295	125	87	105	341	85
DN200	152	340	295	268	30	8-23	220	315	125	87	105	341	95
DN250	165	405	355	320	32	12-27	235	330	125	87	105	341	126
DN300	178	460	410	378	32	12-27	284	349	125	87	105	341	142
DN350	190	520	470	438	36	16-27	319	390	180	140	155	420	190
DN400	216	580	525	490	38	16-30	345	415	180	140	155	420	245
DN450	222	640	585	548	40	20-31	382	519	175	126	133	395	280
DN500	229	715	650	610	42	20-33	420	489	190	146	173	490	370
DN600	267	840	770	725	48	20-36	476	563	190	146	173	490	496
DN700	292	910	840	793	54	24-36	550	630	216	183	212	505	715
DN750	318	975	900	844	54	24-36	580	665	216	183	212	505	865
DN800	318	1025	950	900	58	24-39	600	678	216	183	212	505	930
DN900	330	1125	1050	1000	62	24-39	665	838	258	253	253	518	1030
DN1000	410	1255	1170	1116	66	28-42	775	960	258	253	253	518	1796
DN1100	470	1355	1280	1218	66	32-43	860	1077	287	270	270	580	2026
DN1200	470	1485	1390	1330	66	32-49	910	1127	287	270	270	580	2157
DN1400	530	1685	1590	1530	66	36-49	985	1146	515	405	420	725	3300
DN1600	600	1930	1820	1750	70	40-56	1190	1559	515	405	420	725	5300
DN1800	670	2130	2020	1950	70	44-56	1420	1975	708	585	615	928	7575
DN2000	760	2345	2230	2150	75	48-62	1615	2085	708	585	615	928	10500
