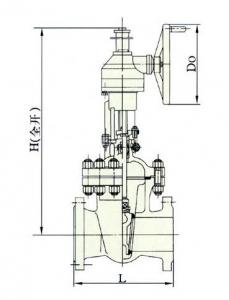

Drawing
Catalogue
Inquiry

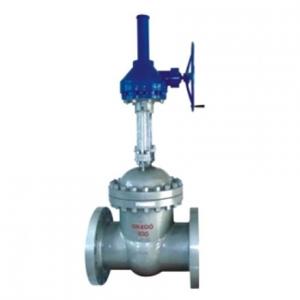

Z541H bevel gear steel gate valve Product introduction

Z541H bevel gear steel gate valve manufacturer, factory and supplier. Z541H bevel gear steel gate valve generally used to connect or disconnect the piping in the media, Z541H bevel gear steel gate valve shut down parts(gate)in the vertical plane centerline of the valve channel to give a lift moving. Flange wedge gate valve can not be used as a regulating the flow of media.

Z541H bevel gear steel gate valveSpecification
Suitable medium: water, oil, steam and non-corrosive media
Working temperature: ≤450℃
Nominal pressure: PN16-PN420
Main Parts material
Body, bonnet: carbon steel, stainless steel
Disc: stainless steel, stainless steel + alloy
Stem: stainless steel
Seat: stainless steel carbon steel alloy
